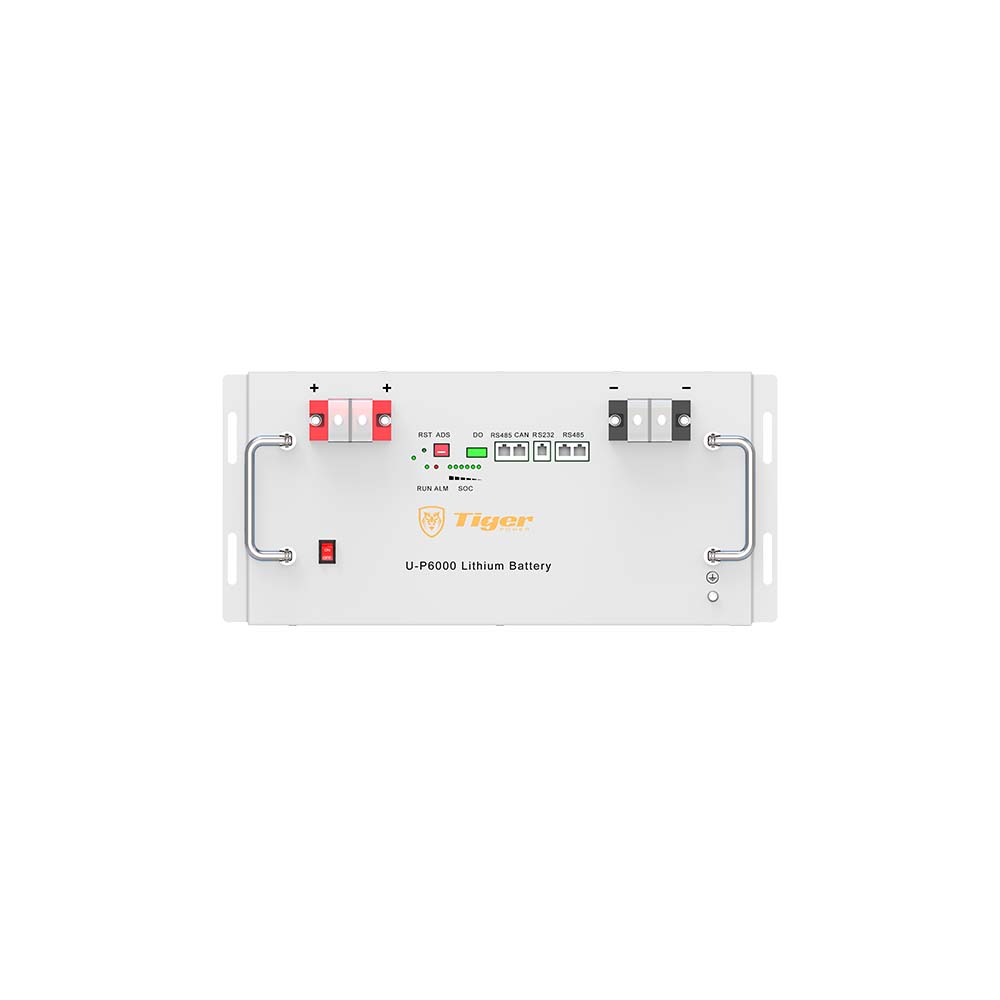

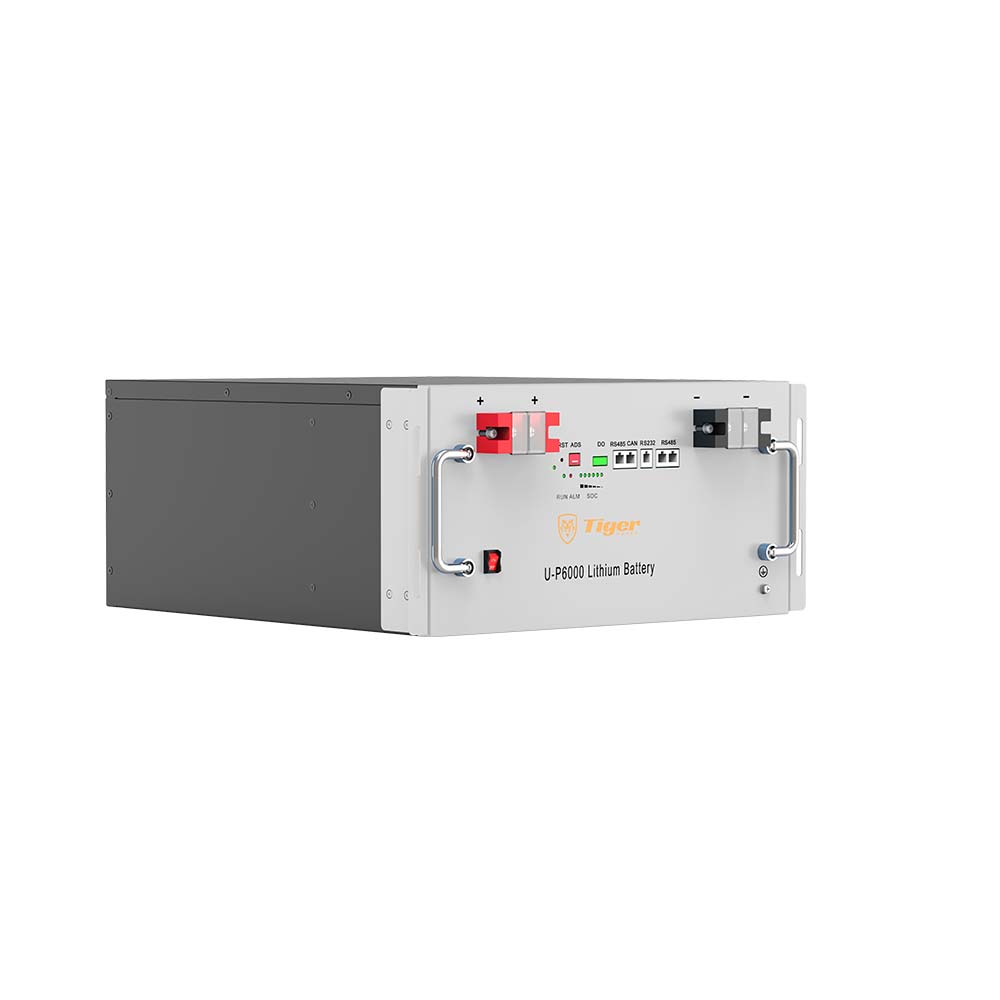

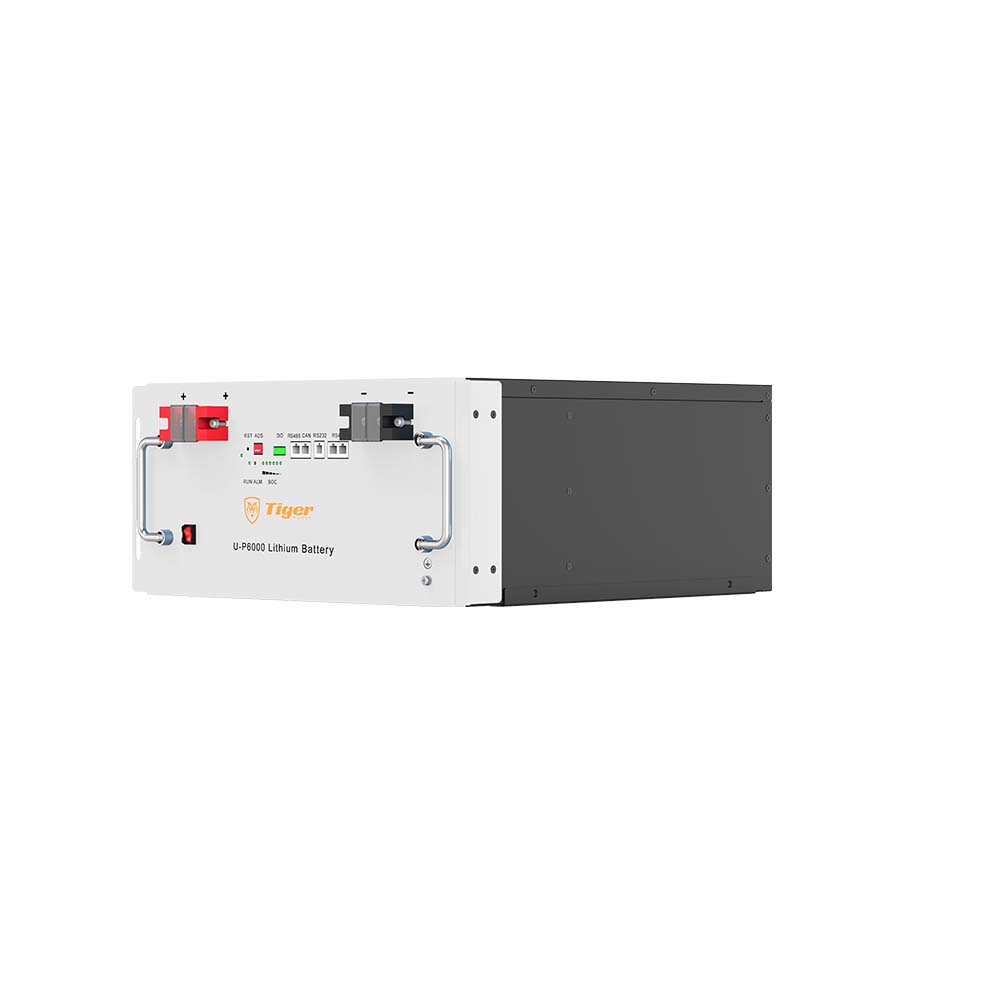

L6-M1

Cell type：LiFePO4, Cylindrical cells

Configuration：16S26P

Nominal Voltage：51.2V

Nominal Capacity：119.6Ah 6124Wh

Charging cut-off voltage：57.0V for the pack and 3.65V for the cells

Discharge cut-off voltage：45.0V for the pack and 2.5V for the cells

Standard Charge/discharge Current @ continuous：60A

Max charge/discharge：80A

Current @ continuous：200A

Dimension：536*438*221mm

Weight：58kg

share-facebook.png share-linkedin.pngshare-twitter.pngshare-tumblr.pngshare-pinterest.png
Inquire
sales@tigerlithium.com

Features

Details

MODEL L6-M1
Cell type LiFePO4,  Cylindrical cells
Configuration 16S26P
Nominal Voltage 51.2V
Nominal Capacity 119.6Ah 6124Wh
Charging cut-off voltage 57.0V for the pack and 3.65V for the cells
Discharge cut-off voltage 45.0V for the pack and 2.5V for the cells
Standard
Charge/discharge
Current @ continuous		 60A
Max charge/discharge
Current @ continuous		 80A
200A
Dimension 536*438*221mm
Weight 58kg
